04 Tutorial — Orthogonal layout

Wire a synthetic network into a clean orthogonal schematic with the HOLA layout engine.

Module Data.visualize · Layouts.Hola Graph 45 nodes · 61 edges · 2 components Layout HOLA ortho · edge bends Output PNG · 1400 × 1400

Layout algorithms are easiest to trust on a graph you can count. This demo builds a deliberately tangled test network — a 5 × 4 mesh, a 12-node chain anchored across it, a seven-leaf star and an isolated five-ring — scatters all vertices at fixed-seed random positions, and hands the mess to the HOLA orthogonal layout engine. The result is rendered through NetworkVisualizer with edge bends enabled, straight into a 1400 × 1400 PNG.

02 Pipeline

A tangled graph, then a clean schematic

Step 1

Build

A 5 × 4 mesh, a 12-node chain, a 7-leaf star and a 5-node ring are assembled on NetworkGraph with AddNode / AddEdge.

Step 2

Tangle

Cross-links between mesh corners and row spans are added on purpose, and every vertex starts at a random position (Random(12345)) so the layout has real work to do.

Step 3

Layout

HOLA.DoLayout(g) iterates the human-like orthogonal algorithm: remove edge crossings, align parallel segments and fold the remaining overlaps.

Step 4

Render

NetworkVisualizer.DrawImage draws a 1400 × 1400 canvas with drawEdgeBends:=True — every orthogonal bend point becomes visible polyline geometry.

Step 5

Report

The script counts nodes, edges and bend-carrying edges from the laid-out graph and echoes them to the console before saving the PNG.

01 The Script

Full demo source

The complete script exactly as executed by the sciBASIC# script engine (vbs.exe) — nothing elided.

hola_layout.vb · 117 linesDownload hola_layout.vb

#include "Microsoft.VisualBasic.Data.visualize.Network.Visualizer.dll"
#include "Microsoft.VisualBasic.Data.visualize.Network.Layouts.dll"
#include "Microsoft.VisualBasic.Data.visualize.Network.dll"
#include "Microsoft.VisualBasic.Drawing.dll"
#include "Microsoft.VisualBasic.Data.GraphTheory.dll"
#include "Microsoft.VisualBasic.Imaging.dll"

imports microsoft.visualbasic.drawing
Imports Microsoft.VisualBasic.Data.visualize.Network
Imports Microsoft.VisualBasic.Data.visualize.Network.Graph
Imports Microsoft.VisualBasic.Data.visualize.Network.Layouts
Imports Microsoft.VisualBasic.Data.visualize.Network.Layouts.Orthogonal
Imports Microsoft.VisualBasic.Data.visualize.Network.Layouts.Hola
Imports inode = Microsoft.VisualBasic.Data.visualize.Network.Graph.Node

Dim g As New NetworkGraph
Dim rnd As New Random(12345)

' 用固定种子的随机散点作为 HOLA 起点，凸显去交叉/对齐/去重叠效果
public function rndPos() as FDGVector2
    return New FDGVector2(rnd.NextDouble() * 1000.0, rnd.NextDouble() * 1000.0)
End function

public sub addNode(label As String)
    Call g.AddNode(New inode With {
        .label = label,
        .data = New NodeData With {
            .initialPostion = rndPos(),
            .size = {18, 18}
        }
    })
End Sub

' === 1) 网格块 5 x 4 = 20 节点 ===
Dim rows = 5, cols = 4
Dim grid(rows - 1, cols - 1) As String
Dim nodeId = 0
For r As Integer = 0 To rows - 1
    For c As Integer = 0 To cols - 1
        Dim id = "n" & nodeId
        grid(r, c) = id
        addNode(id)
        nodeId += 1
    Next
Next
' 行列相邻边
For r As Integer = 0 To rows - 1
    For c As Integer = 0 To cols - 1
        If c + 1 < cols Then Call g.AddEdge(grid(r, c), grid(r, c + 1))
        If r + 1 < rows Then Call g.AddEdge(grid(r, c), grid(r + 1, c))
    Next
Next
' 跨行/跨列边，刻意制造交叉
Call g.AddEdge(grid(0, 0), grid(4, 3))
Call g.AddEdge(grid(0, 3), grid(4, 0))
Call g.AddEdge(grid(1, 1), grid(3, 2))
Call g.AddEdge(grid(2, 0), grid(2, 3))

' === 2) 链式结构 12 节点，两端接到网格块形成长边交叉 ===
Dim chain(11) As String
For i As Integer = 0 To 11
    chain(i) = "c" & i
    addNode(chain(i))
Next
For i As Integer = 0 To 10
    Call g.AddEdge(chain(i), chain(i + 1))
Next
' 链两端接到网格块对角，制造跨图长边
Call g.AddEdge(chain(0), grid(0, 0))
Call g.AddEdge(chain(11), grid(4, 3))

' === 3) 星型结构 1 hub + 7 leaf，hub 连到网格块 ===
Dim hub = "hub"
Call addNode(hub)
Call g.AddEdge(hub, grid(2, 1))   ' hub 挂到网格块中心
For i As Integer = 0 To 6
    Dim leaf = "leaf" & i
    Call addNode(leaf)
    Call g.AddEdge(hub, leaf)
Next

' === 4) 独立小连通分量 5 节点环，验证多分量不被误连 ===
Dim ring = {"r0", "r1", "r2", "r3", "r4"}
For Each rn In ring
    Call addNode(rn)
Next
For i As Integer = 0 To ring.Length - 1
    Call g.AddEdge(ring(i), ring((i + 1) Mod ring.Length))
Next

' === 执行 HOLA 布局 ===
Call HOLA.DoLayout(g)

' 统计节点/边/生成 bends 的边数
Dim nodeCount = 0
For Each n As inode In g.connectedNodes
    nodeCount += 1
Next
Dim totalEdges = 0, bendCount = 0
For Each e As Edge In g.graphEdges
    totalEdges += 1
    If e.data.bends IsNot Nothing AndAlso e.data.bends.Length > 0 Then
        bendCount += 1
    End If
Next

console.WriteLine($"=== HOLA complex network: {nodeCount} nodes, {totalEdges} edges, {bendCount} edges with bends ===")

' 渲染为 PNG（放大画布以容纳更多节点；启用 drawEdgeBends 显示正交折点）
Call SkiaDriver.Register()
Call NetworkVisualizer.DrawImage(g, "1400,1400",
                                 displayId:=False,
                                 drawEdgeBends:=True,
                                 labelerIterations:=-1,
                                 minLinkWidth:=8) _
    .Save("Z:/HOLA_complex_layout.png")

console.WriteLine("[HOLA] complex test done. see ./HOLA_complex_layout.png")

03 Results

The orthogonal schematic

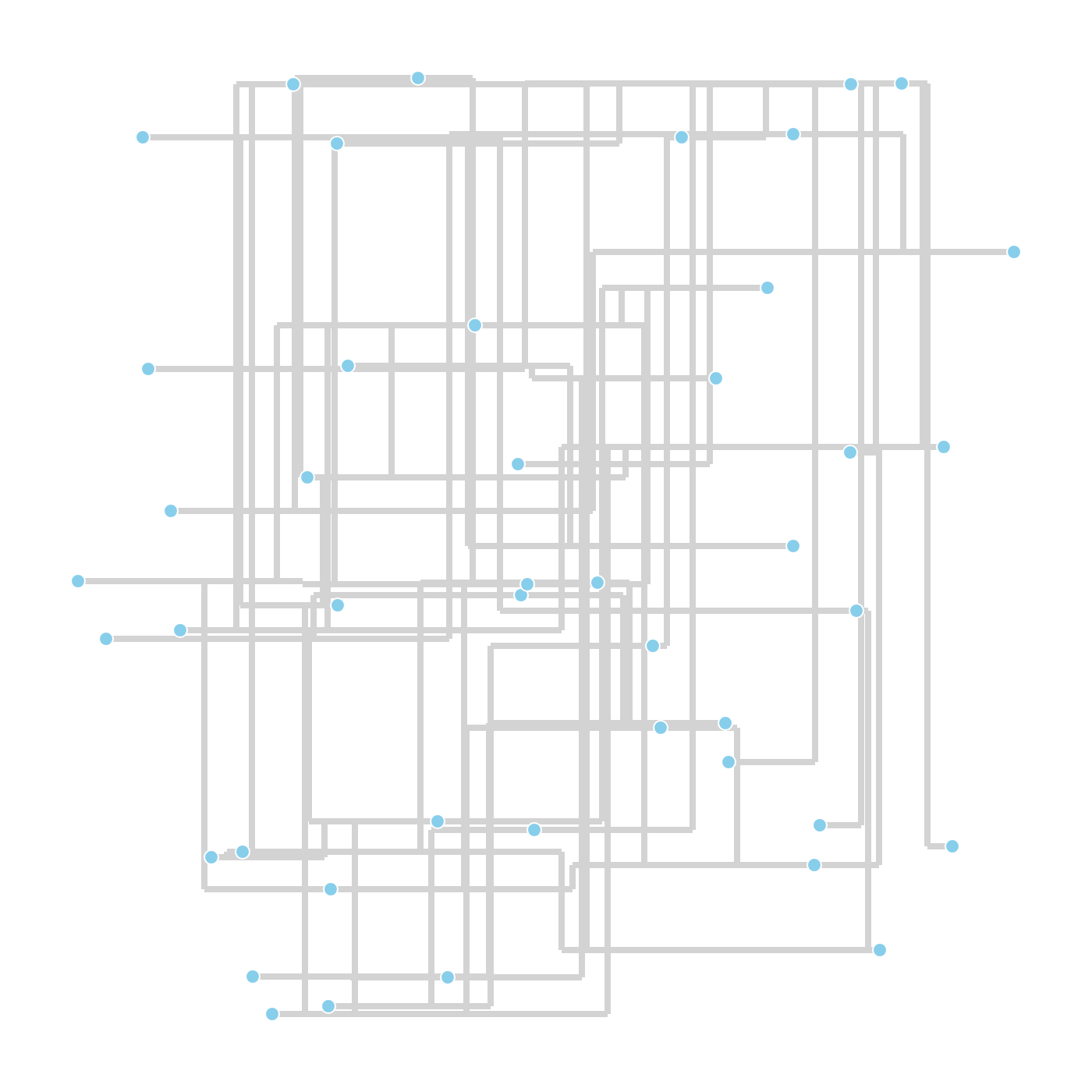

Orthogonal HOLA layout of the synthetic 45-node test network — **Fig. 1** — HOLA layout of the synthetic test network (45 nodes · 61 edges · 2 connected components). Gray orthogonal polylines route the edges on a shared grid with visible bend points; the 12-node chain bridges the mesh across the full canvas, the 7-leaf star hangs off its hub, and the detached 5-ring keeps its own compact layout at the lower edge.

Nothing about the drawing is hand-tuned: the start positions are a fixed-seed random scatter, and every straight segment, corner and bend in the figure was produced by the layout engine itself — which is exactly what makes the output a usable regression fixture for the visualizer.

hola_layout.vb HOLA_complex_layout.png
